前言

Druid是阿里巴巴开源的数据库连接池，号称是Java语言中最好的数据库连接池，能够提供强大的监控和扩展功能。GitHub地址：https://github.com/alibaba/druid。

pom.xml文件

添加jpa、mysql和druid依赖。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
<properties>
    <java.version>1.8</java.version>
    <druid.version>1.1.16</druid.version>
</properties>

<dependencies>
    <!--jpa-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <!--mysql-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <!--druid-->
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>${druid.version}</version>
    </dependency>
</dependencies>

配置文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
server:
  port: 8080
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/test?serverTimezone=GMT
    username: root
    password: 123456
    driver-class-name: com.mysql.jdbc.Driver
    type: com.alibaba.druid.pool.DruidDataSource
    # 初始化大小，最小，最大
    initialSize: 5
    minIdle: 5
    maxActive: 20
    # 配置获取连接等待超时的时间
    maxWait: 60000
    # 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
    timeBetweenEvictionRunsMillis: 60000
    # 配置一个连接在池中最小生存的时间，单位是毫秒
    minEvictableIdleTimeMillis: 300000
    # Oracle请使用select 1 from dual
    validationQuery: select 'x'
    testWhileIdle: true
    testOnBorrow: true
    testOnReturn: false
    # 打开PSCache，并且指定每个连接上PSCache的大小
    poolPreparedStatements: true
    # 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
    filters: stat,wall,slf4j
    maxPoolPreparedStatementPerConnectionSize: 20
    # 合并多个DruidDataSource的监控数据
    useGlobalDataSourceStat: true
    # 通过connectProperties属性来打开mergeSql功能；慢SQL记录
    connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
  jpa:
    #配置 DBMS 类型
    database: MYSQL
    show-sql: true
    properties:
      hibernate:
        hbm2ddl:
          auto: update
        dialect: org.hibernate.dialect.MySQL5InnoDBDialect

Druid配置类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
@Configuration
public class DruidConfig {

    private Logger logger = LoggerFactory.getLogger(this.getClass());

    @Value("${spring.datasource.url}")
    private String dbUrl;

    @Value("${spring.datasource.username}")
    private String username;

    @Value("${spring.datasource.password}")
    private String password;

    @Value("${spring.datasource.driver-class-name}")
    private String driverClassName;

    @Value("${spring.datasource.initialSize}")
    private int initialSize;

    @Value("${spring.datasource.minIdle}")
    private int minIdle;

    @Value("${spring.datasource.maxActive}")
    private int maxActive;

    @Value("${spring.datasource.maxWait}")
    private int maxWait;

    @Value("${spring.datasource.timeBetweenEvictionRunsMillis}")
    private int timeBetweenEvictionRunsMillis;

    @Value("${spring.datasource.minEvictableIdleTimeMillis}")
    private int minEvictableIdleTimeMillis;

    @Value("${spring.datasource.validationQuery}")
    private String validationQuery;

    @Value("${spring.datasource.testWhileIdle}")
    private boolean testWhileIdle;

    @Value("${spring.datasource.testOnBorrow}")
    private boolean testOnBorrow;

    @Value("${spring.datasource.testOnReturn}")
    private boolean testOnReturn;

    @Value("${spring.datasource.poolPreparedStatements}")
    private boolean poolPreparedStatements;

    @Value("${spring.datasource.maxPoolPreparedStatementPerConnectionSize}")
    private int maxPoolPreparedStatementPerConnectionSize;

    @Value("${spring.datasource.filters}")
    private String filters;

    @Value("{spring.datasource.connectionProperties}")
    private String connectionProperti   es;

    @Bean
    @Primary  //主数据源
    public DataSource dataSource() {
        DruidDataSource datasource = new DruidDataSource();
        logger.info("----------- druid datasource ----------");

        datasource.setUrl(this.dbUrl);
        datasource.setUsername(username);
        datasource.setPassword(password);
        datasource.setDriverClassName(driverClassName);

        //configuration
        datasource.setInitialSize(initialSize);
        datasource.setMinIdle(minIdle);
        datasource.setMaxActive(maxActive);
        datasource.setMaxWait(maxWait);
        datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis);
        datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis);
        datasource.setValidationQuery(validationQuery);
        datasource.setTestWhileIdle(testWhileIdle);
        datasource.setTestOnBorrow(testOnBorrow);
        datasource.setTestOnReturn(testOnReturn);
        datasource.setPoolPreparedStatements(poolPreparedStatements);
        datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize);
        try {
            datasource.setFilters(filters);
        } catch (SQLException e) {
            logger.error("druid configuration Exception", e);
        }
        datasource.setConnectionProperties(connectionProperties);

        return datasource;
    }

    /**
     * 自定义的Servlet注册
     *
     * @return
     */
    @Bean
    public ServletRegistrationBean statViewServlet() {
        // 创建servlet注册实体
        ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(new StatViewServlet());
        //druid监控统计路径
        servletRegistrationBean.addUrlMappings("/druid/*");
        // 设置ip白名单(没有配置或者为空，则允许所有访问)
        servletRegistrationBean.addInitParameter("allow", "");
        // 设置ip黑名单,如果allow与deny共同存在时,deny优先于allow
        servletRegistrationBean.addInitParameter("deny", "");
        // 设置控制台管理用户
        servletRegistrationBean.addInitParameter("loginUsername", "admin");
        servletRegistrationBean.addInitParameter("loginPassword", "admin");
        // 是否可以重置数据
        servletRegistrationBean.addInitParameter("resetEnable", "false");
        return servletRegistrationBean;
    }

    /**
     * 自定义的Filter注册
     * @return
     */
    @Bean
    public FilterRegistrationBean statFilter() {
        // 创建过滤器
        FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean(new WebStatFilter());
//        filterRegistrationBean.setName("druidWebStatFilter");
        // 设置过滤器过滤路径
        filterRegistrationBean.addUrlPatterns("/*");
        // 忽略过滤的形式
        filterRegistrationBean.addInitParameter("exclusions", "*.js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*");
        return filterRegistrationBean;
    }
}

实体类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
@Entity
@Table(name = "city")
public class City {

    @Id
    @GeneratedValue(generator = "system-uuid")
    @GenericGenerator(name = "system-uuid", strategy = "uuid")
    private String cityId;
    private String cityName;
    private String cityIntroduce;

    public City(String cityId, String cityName, String cityIntroduce) {
        this.cityId = cityId;
        this.cityName = cityName;
        this.cityIntroduce = cityIntroduce;
    }

    public City(String cityName, String cityIntroduce) {
        this.cityName = cityName;
        this.cityIntroduce = cityIntroduce;
    }

    public City() {
    }

    public String getCityId() {
        return cityId;
    }

    public void setCityId(String cityId) {
        this.cityId = cityId;
    }

    public String getCityName() {
        return cityName;
    }

    public void setCityName(String cityName) {
        this.cityName = cityName;
    }

    public String getCityIntroduce() {
        return cityIntroduce;
    }

    public void setCityIntroduce(String cityIntroduce) {
        this.cityIntroduce = cityIntroduce;
    }
}

Repository类

1
2
3
4
5
6
public interface CityRepository extends JpaRepository<City, String> {

    void deleteByCityId(String id);

    City findByCityId(String id);
}

controller类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
@RestController
public class CityController {

    @Autowired
    private CityRepository cityRepository;


    //http://localhost:8080/saveCity?cityName=北京&cityIntroduce=中国首都
    @GetMapping(value = "saveCity")
    public String saveCity(String cityName, String cityIntroduce) {
        City city = new City(cityName, cityIntroduce);
        cityRepository.save(city);
        return "success";
    }

    //http://localhost:8080/deleteCity?cityId=2
    @GetMapping(value = "deleteCity")
    @Transactional
    public String deleteCity(String cityId) {
        cityRepository.deleteByCityId(cityId);
        return "success";
    }

    //http://localhost:8080/updateCity?cityId=3&cityName=郑州&cityIntroduce=河南省省会
    @GetMapping(value = "updateCity")
    public String updateCity(String cityId, String cityName, String cityIntroduce) {
        City city = new City(cityId, cityName, cityIntroduce);
        cityRepository.save(city);
        return "success";
    }

    //http://localhost:8080/getCityById?cityId=3
    @GetMapping(value = "getCityById")
    public City getCityById(String cityId) {
        City city = cityRepository.findByCityId(cityId);
        return city;
    }
}

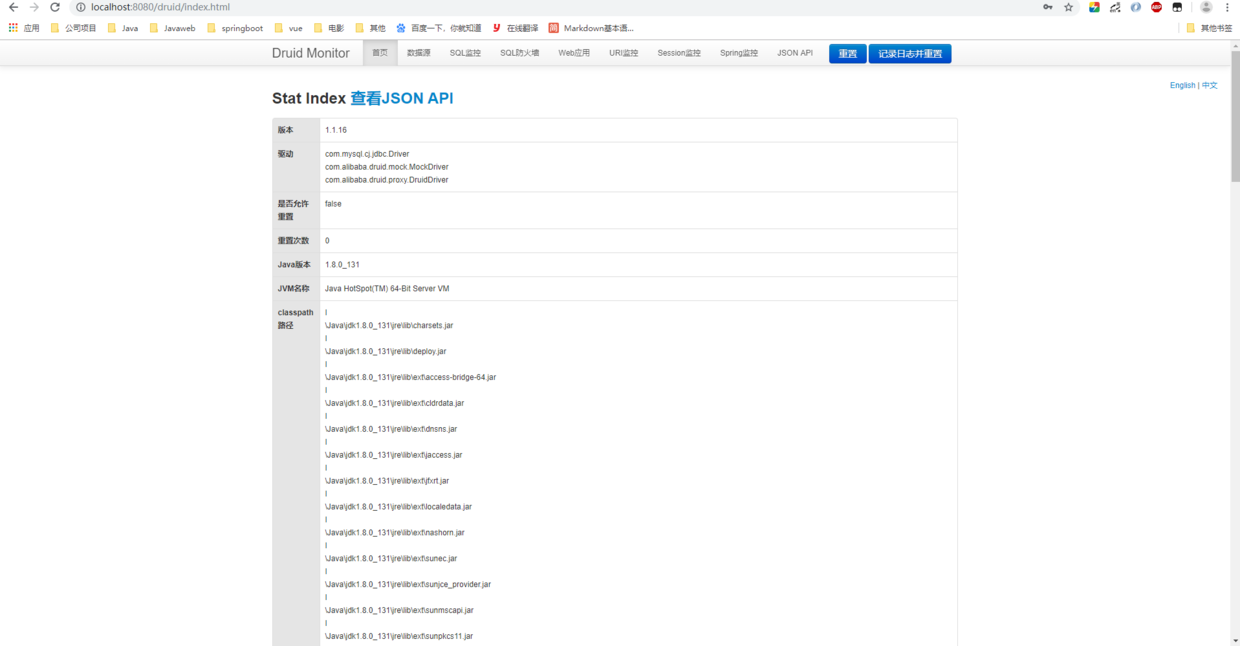

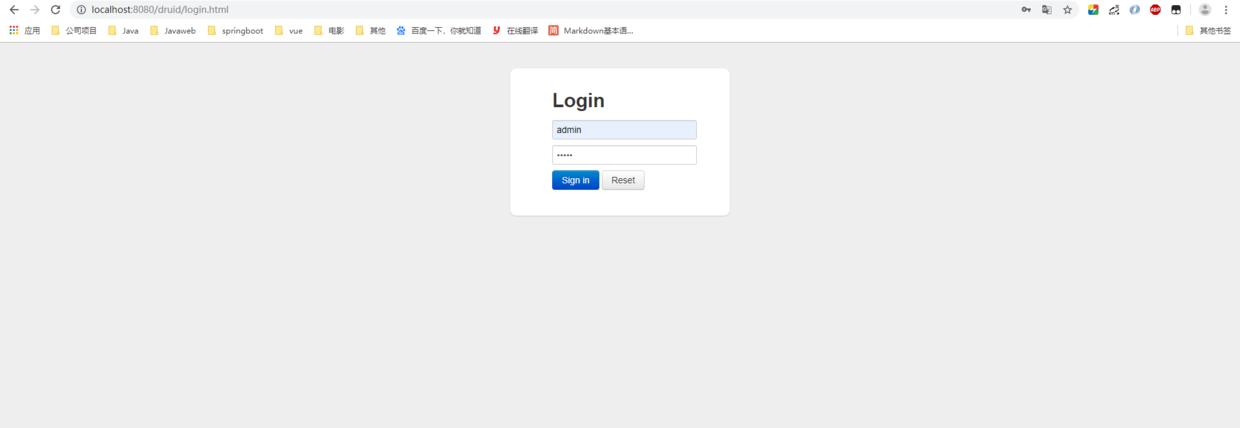

启动项目
